Ford UCDS Pro+

Description:
The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual
UCDS-program.
The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the
service mode for adapter`s firmware update or other service functions.
UCDS currently works with the following platforms: For Focus II 2004-2011; For Focus III 2011, 2015 ; For Kuga I, For Kuga II; For
C-MAX; For S-MAX; For MONDEO IV; For Mondeo 2015 ; For Galaxy ; For Tansit; For Fiesta 2008, 2015 etc..
New Released Diagnostic Adapter with newest software V1.27.001 can replace For Focom Vehicle Communicate Module 2, just one.
difference, UCDS cannot key programming, but UCDS (Universal CAN Diagnostic System) for Focom can support Mileage Correction and
it is full function type.

Please Note Important:
Please Disconnect internet when Run software.
Please don’t update online, otherwise it will be locked.
MUST Click “No” when message show out to ask you update.

Highlights to get UCDS PRO+
UCDS Software:V1.27.001
UCDS full license adapter: full mode activated, access to existing sections of the software, such as: VBF Loader, Update Wizard and
Direct Config.
With 35 tokens: token only need for mileage programming & ECU chip tuning function (When use up tokens, send back to add token,
Need pay extra cost.)
UCDS support odometer correction
For Focom cars from 2004 to 2017 Year.
Full Mode Activated
Best replacement for Focom Vehicle Communicate Module 2

Functions
Read the fault code.
Clear trouble codes
Read the data stream.
Data recording
Module reset.
Module Installation
Re-program the ECU TCM BCM and so on
Clear the airbag (RCM) collision data.
Read, backup, edit, and erase as built files.
Read, backup, edit, and erase the underlying Direct Config configuration file.
Support power to enhance the brush to write, such as Mondeo 2.0T 200HP brush 240HP, 12 Fox 85HP brush 105HP, 150HP brush 163HP
Support VBF file directly to write.
Support BIN file directly to write.
Support online update vehicle entire module (Update Wizard)
Support For Fox MK2, 12 for Fox MK3, winning, S-Max and other models meter mileage clear, brush to write.

For UCDS-Ford New Features
The dashboard can be displayed from English to Chinese; the new for Mondeo power can be upgraded from low to high; the navigation.
OPS of Escape can be flashed; the SCT program can be input; the SCT device (token limited) can be replaced.

Supported Vehicles:
For Fox MK2 (2004-2014) C307
New For Focus MK3 (2012-2017) C346
For Wing tiger 15 wing tiger 17 wing tiger
For Mondeo wins S-Max Galay
New For Mondeo 13 (Mondeo5)
For Explorer
For Transit
For Carnival B-Max
For Wing Bo
And other new models

UCDS can do?
– Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the
data bus (CAN);
– Receive data embedded in the car components and modules, including their part number, version, calibration, serial number.
– Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components
if necessary.
– Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip
tuning);
– Perform regular language adaptation of the audio modules manufactured by for SONY (Russian language only)

Package List

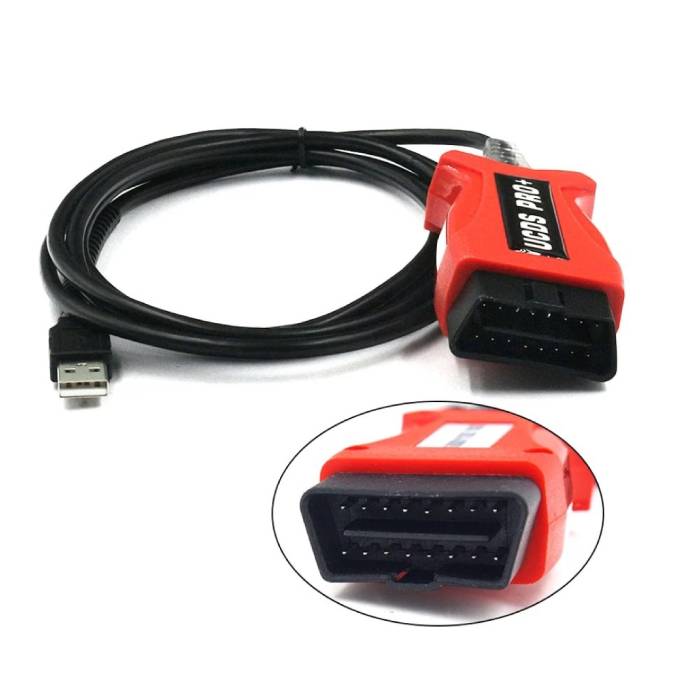

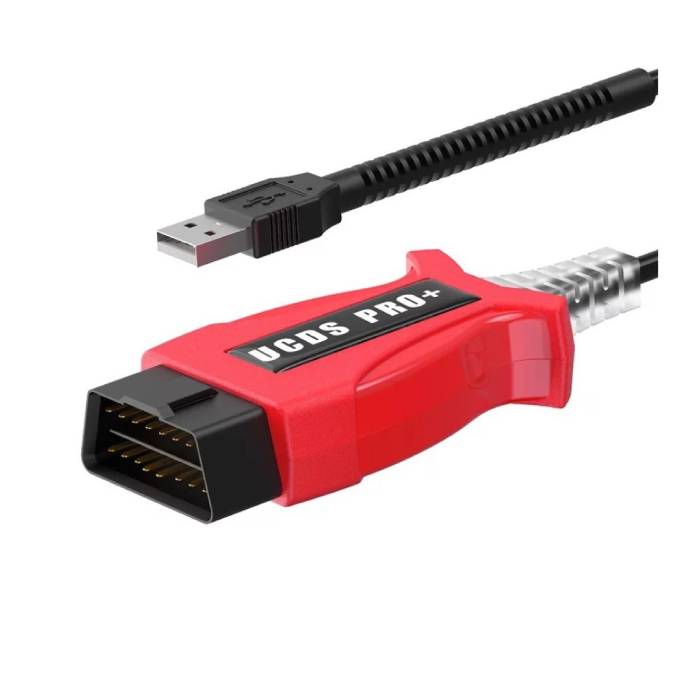

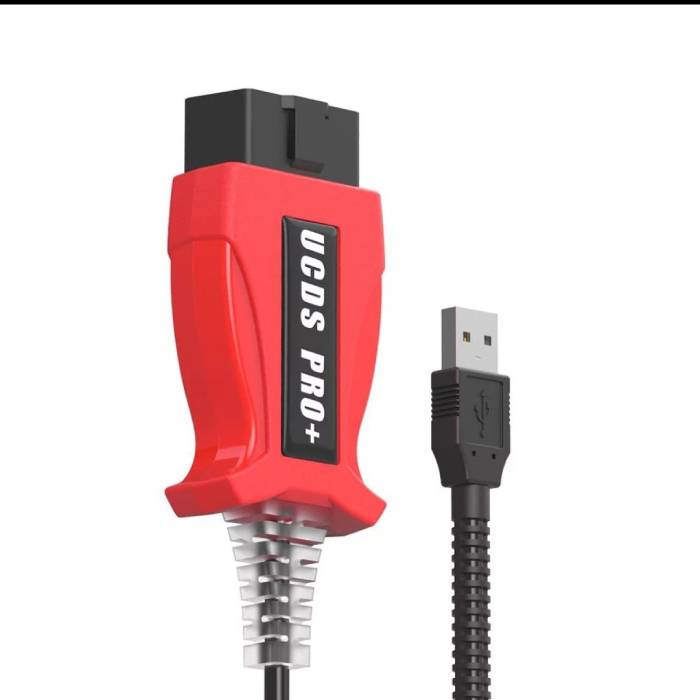

1 x UCDS PRO
1 x CD Software
