Nexiq USB Link Heavy Duty Diagnostic Tool

Nexiq Features:
Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more.
Reduce reprogramming times with direct USB connection
Mixed fleet capabilities with broad protocol support
Quick access to vehicle data for maintenance or management reports
Quickly attaches to vehicle’s diagnostic connector.
Easy portability increases flexibility, May be used with desktop PC or laptop.

What software NEXIQ 125032 USB Link packed with?
– Allison (Included!)
– Bendix 6.3.8.0 (Included!)
– Detroit Diesel DDDL 7.05 ((Included!)
– Detroit Diesel DDCT (Included!)
– Detroit Diesel Calibration Tool (Included!)
– Eaton Service Ranger 3.2 (Included!)
– International DLB (Included!)
– International ICAP, IPTS, NETS, IPC (Included!)
– International Master Diagnostic (Included!)
– Meritor and Wabco Diagnostics (Included!)
– Cummins Insite 7.5 (Included!)
– Hino 2.0.3. (Included!)
– Caterpillar 2.0.1.0 (Included!)
– Perkins EST 2010B (Included!)
– V Macks 2.6.12 (Included!)
– V Macks Dealer Pro (Included!)
– Volvo VCADS 2.35.10 (Included!)
– Toyota Techstream for car (Included!)

Specifications of Nexiq support:
RP1210A, RP1210B, and J2534 API support
USB vehicle-to-PC connectivity
Protocol coverage for automotive to heavy duty vehicles:
CAN – J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN – J1939/CAN125/CAN250/CAN500/CAN1000
Automatic bit rate detection for both CAN channels
J1587/J1708
J1850
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)
J2534
ALDL
ATEC 160 (160 baud)
Supports Windows XP and windows 7 32bit

(Volvo, Hino, Perkins, CAT, International, Isuzu software must be used on a Windows XP system with Nexiq USB-Link, other software can be used on Windows 7 32bit)

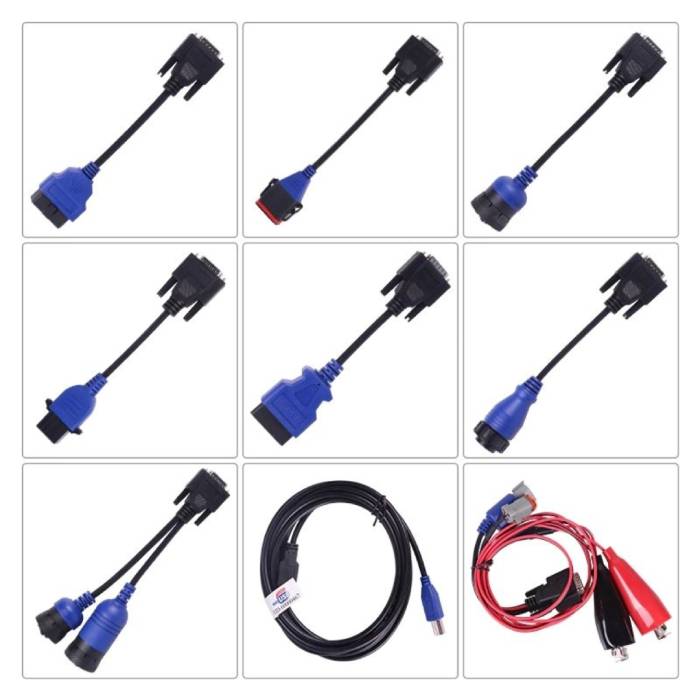

Nexiq Package includes:
1PC * NEXIQ USB-Link module

1PC * 6-pin / 9-pin vehicle “Y” adapter

1PC * 16PIN J1962(OBD2)

1PC * 16PIN J1962(Heavy Duty)

1PC* 8-pin Volvo / MACK

1pc * 14 -pin Volvo construction equipment

1PC * USB cable

Nexiq Protocol Coverage
CAN – J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN – J1939/CAN125/CAN250/CAN500/CAN1000 J1587/J1708 J1850 J2534
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141) ALDL ATEC 160 (160 baud)

Nexiq Supports Heavy-Duty, Light-and Medium-Duty Trucks, CONSTRUCTION EQUIPMENT like (Wheel loader, Articulated Hauler and Excavator), Genset.

Nexiq Heavy-Duty Truck Diagnostic Applications
1 VOLVO TRUCK: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12,VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY

2 VOLVO BUS: B12B,B12M,B12R,B6R,B7L,B7R,B9L,B9R,B9S,B9TL,PREVH,PREVX, 3 MACK TRUCKS: V-MAC I, V-MAC II, V-MAC III, V-MAC IV, Service Diagnostic

4 VOLVO CONSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B,EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B,EW210C, FC2121C,

FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990

5 Navistar: ALL Diamond Logic Builder (DLB) ServiceMaxx

6 International: ALL Intune, MD32,

7 Freightliner: ALL ServiceLink: Cascadia, century, Columbia, Coronado, classic, FLDSD,4900FA, 4900SA,4900EX.

8 HINO: ENGINE:300SERIES, 500 SERIES, CR03_J08E, CR03_J05D, COMMONRAIL(J05E), J05D_US, J08E_US,P11C,VCS, Hybrid, Inverter, Brake(ABS), AT_45043LE

9 ISUZU_G M C: 1996-1999 NPR Diesel and F Series Include NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L 6HK1 Engine
Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine

G M: W3500, W4500, W5500, WT5500, W5500 HD,with 5.2L Diesel Engine Only,T6500,T7500, T8500 10 SCANIA VEHICLE, KOMATSU excavator, and MAN vehicle will be updated.

Nexiq USB-Link works with many popular engines including: Detroit Diesel Cummins, Perkins Engines.

1 Detroit Diesel Diagnostic LinkTM (DDDL)
All DDEC VI equipped engines ,DD13,DD15,DD16,SERIES60,MBE4000,MBE900,and RS9, RSX9-A,RSX9-B, RSX9-R,RS10, RSX10 J1939 engine brake level for Series 2000 and 4000 Engines with USA and ISO firing order selection.

2 Caterpillar (On High Way Engine for J1939)
3126, 3406, 3306B, 3512C, C4.4, C6.6 C7 C9 C11, C13

3 Cummins INSITE 4d95-cm2150c/D 6d125/6d140/6d170 B5.9g
