Thinkdiag 2

Thinkdiag2 is a portable and economical car troubleshooting tool suitable for car owners, DIYers, and repair shops.
It is equipped with BT 5.0 BLE dual mode.
Compatible with Android & IOS systems.
It supports BT transmission between the longest distance of 33 feet, which allows you to perform diagnostic tests without sitting in the car on hot summer days.

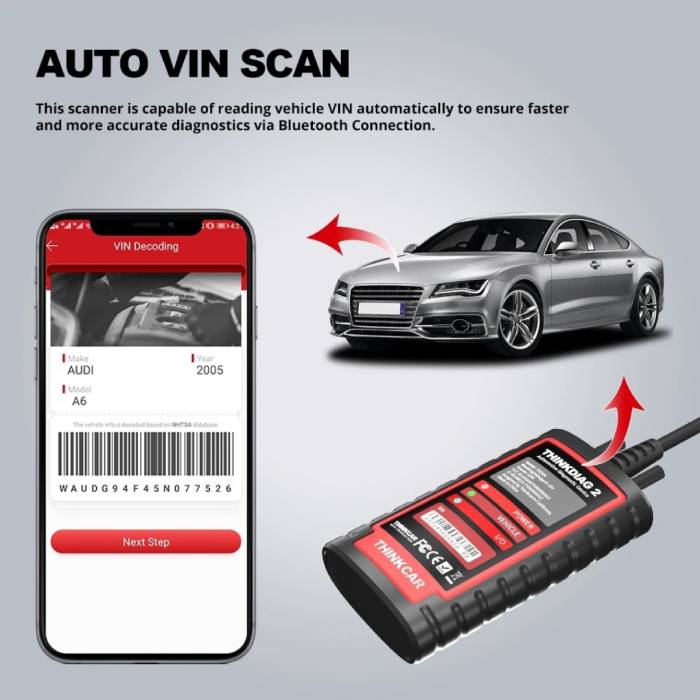

Thinkdiag2 professional scan tool added the CAN-FD protocol, which supports the newest (2020-2021) GM vehicles, and supports full system and full function diagnosis, its Auto-VIN function not only can quickly and accurately scan the full system for existing and potential faults but also can get a professional vehicle health diagnosis report after diagnosing.
Support ECU Coding, and activate the hidden functions for some VW, AUDI, BENZ, and BMW models.
It can perform all the commands of mechanic needs, to find the problem whether caused by the car’s electrical wiring or the car’s component.
It is also a bidirectional control OBD2 scanner, the actuation tests help us to verify system input/output without using the vehicle’s controls, such as: turning on the radiator fan, adjusting the throttle, opening/closing windows, operating mirrors, injector Buz test, and turning on interior and exterior lights, sound horn, test door lock actuators, etc.
Not only supporting 15 popular special functions, if entering the all-system diagnostic menu, but you will also unlock more special functions of your vehicle support, not at all inferior to any high-value (exceed 400 dollars) professional diagnostic tool.
Thinkcar Thinkdiag2 supports key matching & deleting.
To prevent the car from being used by unauthorized keys and must be performed the anti-theft key matching function, so that the immobilizer control system of the car identifies and authorizes remote control keys to normally use the car.
Notice: When the ignition switch key/combined instrument panel/ECU/BCM/ remote control battery is replaced, IMMO matching must be performed.
Repair Info provides vehicle diagnostic tutorials, flashlight functions, and a coverage list.

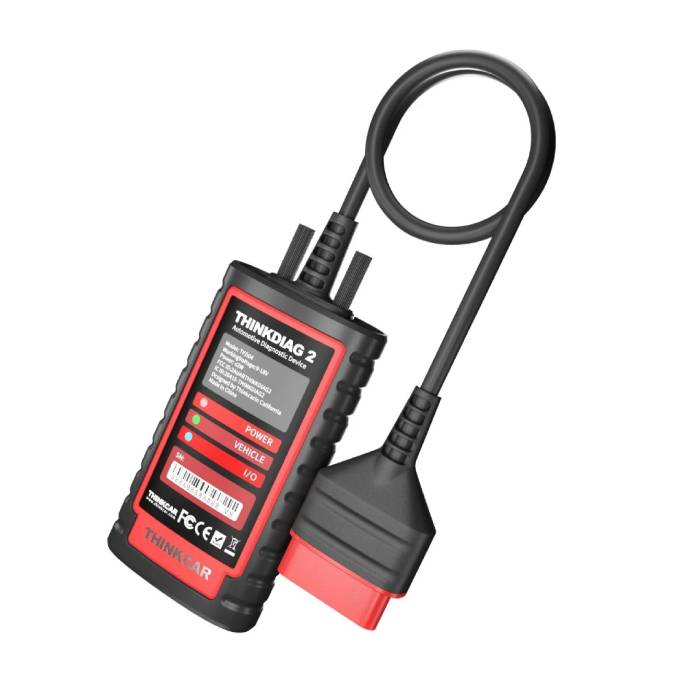

Adopt soft rubber and ABS plastic shell, which are more wear-resistant and dustproof but also have the effect of anti-drop protection and shock absorption.

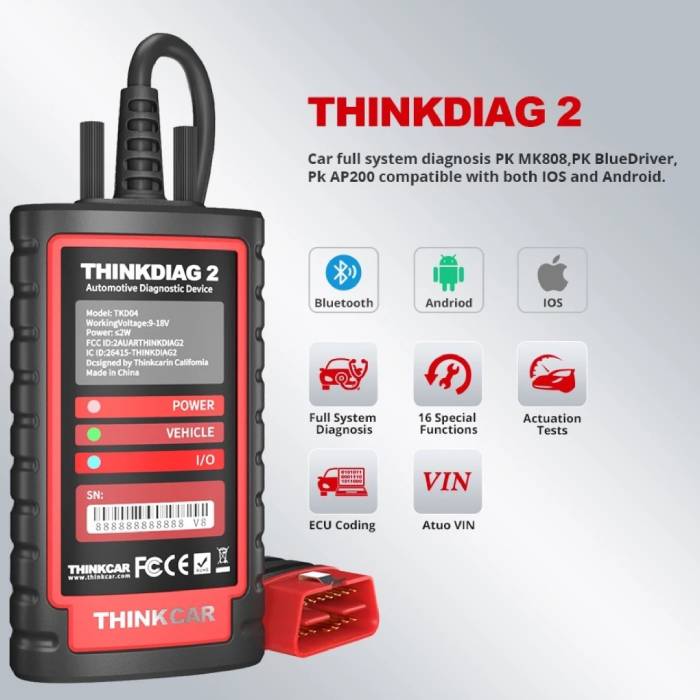

The body uses a double-sided signal indicator to better identify the communication status, where the green signal indicates a diagnostic connection signal, the blue signal indicates a BT signal and the red light indicates a power signal.
Tips: Internet connection is recommended when using it. Some functions may not be available or diagnostic result error without connecting network.

*Oil Light Reset: This allows you to recalculate the engine oil life system after an oil change.
*TPMS Reset: When the car tire pressure fault light is on, after carrying out maintenance, you need to reset the tire pressure through the tire pressure reset function to extinguish the tire pressure fault light.
*IMMO Matching: In order to prevent the car from being used with illegal keys, the anti-theft key matching function enables the immobilizer control system on the car to identify and authorize the remote control before the car can be used normally.
*Brake pad reset: When the brake pads and brake pad wear sensing line are replaced, the brake pad indicator lights up, after the brake pad sensor line short circuit is repaired, or after the servo motor is replaced, the reset needs to be done.
*SAS Calibration: Calibrate the steering angle sensor and clear the fault memory.
*Battery Reset: It is to use Thinkdiag2 to perform a reset process on the monitoring unit of the car battery, clear the original fault information about the battery being low, make it match again, and let the monitoring unit monitor with the relevant information of the existing battery as the standard.
*ABS Bleeding: When the ABS system contains air, the brake system needs to be exhausted through the ABS exhaust function to restore the ABS system braking sensitivity. The ABS bleed function is required when replacing the ABS computer, ABS pump, brake master pump, brake sub-pump, brake lines, and brake fluid.
*ETS Learning: Initializes the throttle actuator to restore the “learning” values stored on the ECU to their default state.
*DPF regeneration: Generally, DPF regeneration matching is required when the exhaust back pressure sensor is replaced, the particulate trap is removed or replaced, the fuel additive nozzle is removed or replaced, the catalytic oxidizer is removed or replaced, the DPF regeneration fault light is illuminated and matched after repair, and the DPF regeneration control module is repaired and replaced, mainly to remove the trap performance by using combustion oxidation on a regular basis Always maintain the best stability.
*Injector Coding: usually in the replacement of ECU, the injector nozzle, is required to confirm the code of each cylinder nozzle or re-code. So
