Vehicle DVR with GPS and Fleet Management

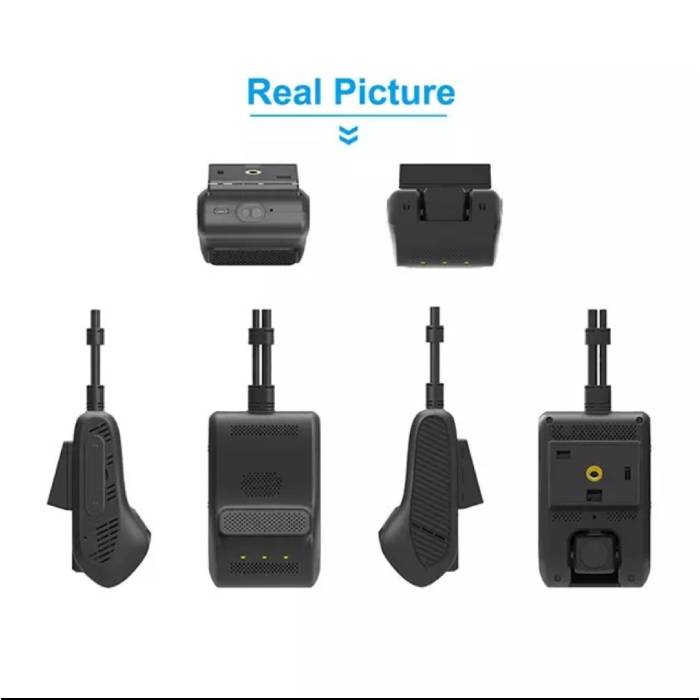

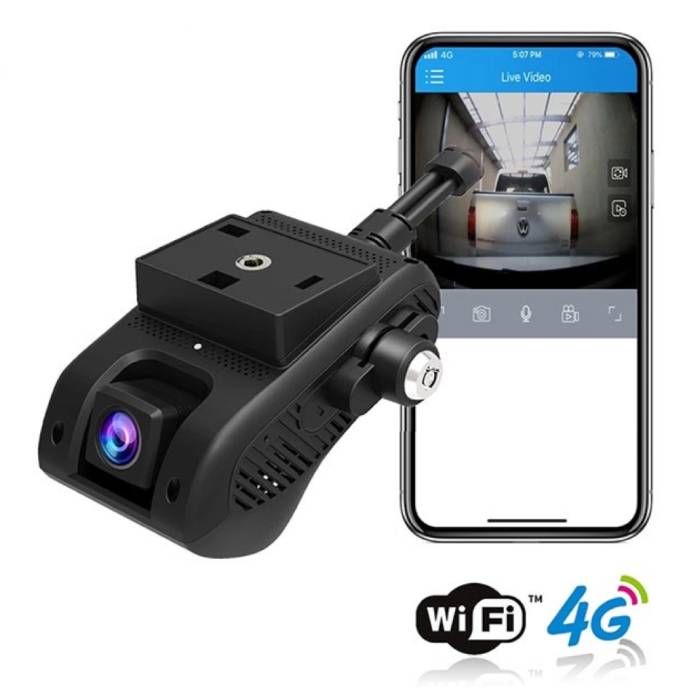

The updated windscreen mounted JC400P cloud capable EdgeCam 2 comes with a 1080p front camera that records everything on the road and in the cabin. The JC400P 4G dashcam enables you to get a more complete view of the situation in case of an accident or emergency day or night.

Network Connection:
Wi-Fi 802.11 b/g/n 204 GHz, Hotspot
GSM & WCDMA & 4G

Hardware:
CPU – ARM Cortex A53 @ 1.4 GHz
OS – Android 8.1 GO
Flash Memory – RAM+ROM LPDDR3 1GB + eMMC 16G

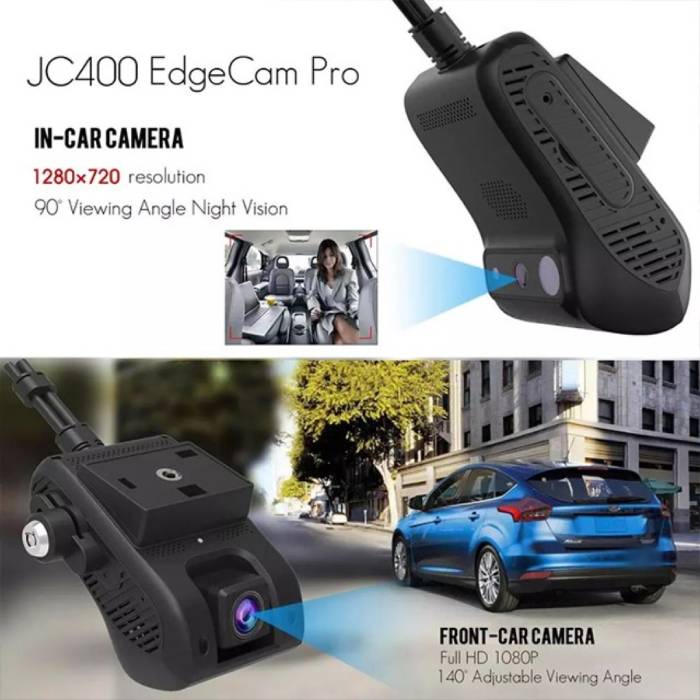

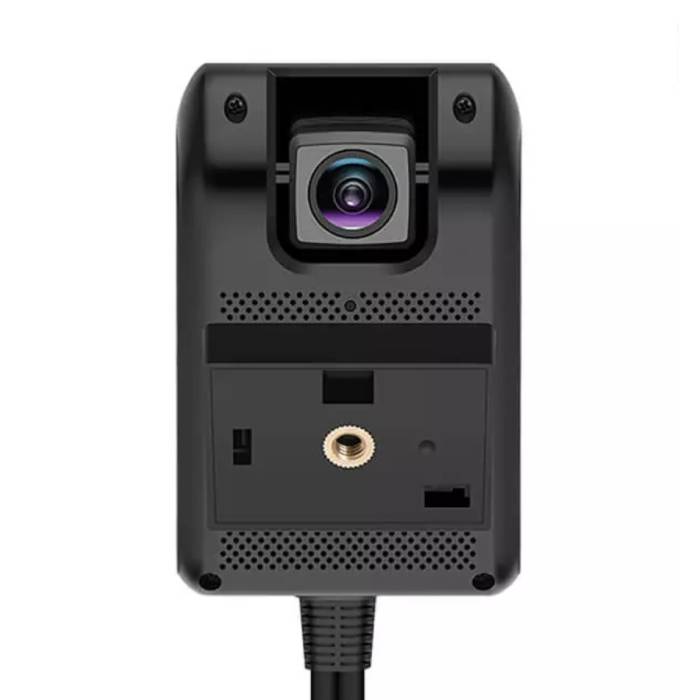

Road Facing Camera – AHD,1080P, Dynamic frame ate, 118° horizontal viewing angle

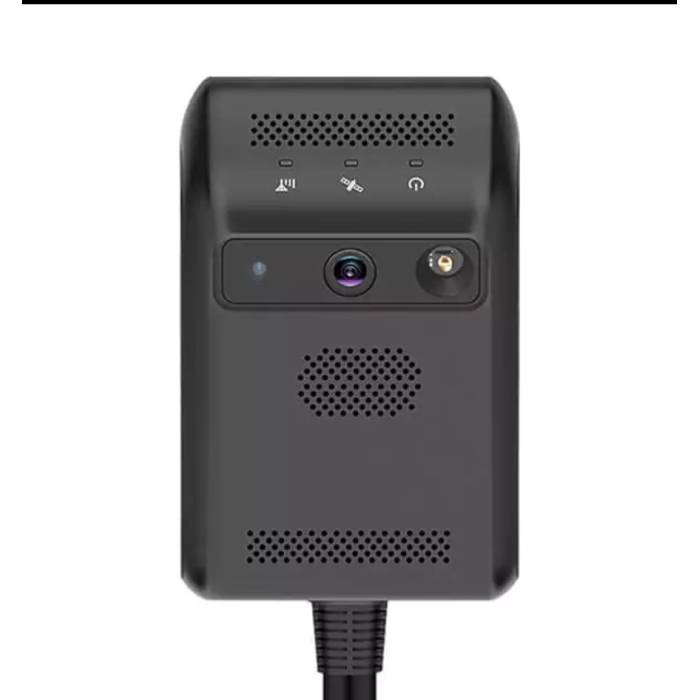

Inward Facing Camer – AHD, 720P, Dynamic frame, 90° horizontal viewing angle.
GNSS module – GPS+BDS Built in ceramic antenna.
G-Sensor – Accelerometer, Gyroscope 6 axis
MIC & Speaker – Built in
TF Card – Max 128GB

I/O Configuration:
ACC – Ignition detection
Relay – Immobilization / Remote engine cut-off
UART I/O (Extended I/O) – Open for RFID reader, fuel sensor, load sensor, temperature sensor.
SOS – Panic Button

Power:
Supply Voltage – DC 9-30V Suitable for cars, trucks, buses, electric automobiles, etc.
External Battery – 450mAh for emergency situation when car battery is disconnected.

Size:
Dimension – 109*69*52 mm
Weight – 225g

Notice:
Customer to supply own Sim Card
1GB-2GB data per month for day-to-day use will be enough.
128GB SD Card not included.
Once off Fleet Management and Camera remote access Included.
